SS304 High-efficiency Vertical Pressure Bag Filter with reinforced
filter gauze
Description
DL bag-type filters are a kind of all purpose filter equipment with
original structure, small volume, easy and agile operation, energy
conservation, high efficiency, leak-free working mode and strong
adaptability.

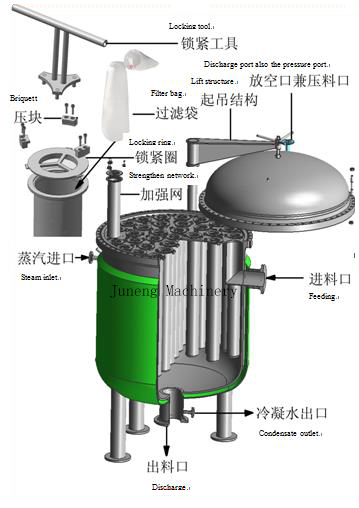

DL filters are mainly composed of the main components of filtering
jar body, filtering jar cover and rapid opening mechanism,
reinforced filter gauze and filter bag.
Working principle
This kind of filters is kind of pressure type filtrating equipment.
The liquid flows into the filer jar through the inlet pipe on the
casing. The filter bag is installed within the reinforced filter
gauze. The liquid percolating through the filter bag with required
degree of fineness is qualified filtrate and the filter bag catches
the impure particles at the same time. The change of the filter bag
is very convenient and nearly no material is consumed.
Stainless steel bag filter
Bag filter is a new design filtration equipment. It's supported by
metal baskets. The liquid flows into the filter,solid stopped by
filter bag,and clean liquid flows out.
Model | DL-4P2S |
Filter area (m2) | 2 |
Inlet/outlet Caliber (inch) | 3 |
Max Flow Rate (m3/h) | 80 |
Nominal Filtration Precision (microns) | 1,5,10,15,25,40,50,60,75,80,100......1200 |
Technical data
型 号 Model | 过滤面积 Filtration area (m²) | 进 出 口 径 Caliber of the inlet/outlet | 最高流量M³/h <粘度=1厘泊> Maximum flow rate (m³/h) <Viscosity =1 cP | 筒体直径 (mm) Diameter of the jar (mm) |
| DL(T)-1P1S | 0.25 | DN50 | 10 | 219 |
| DL(T)-1P2S | 0.5 | DN50 | 20 | 219 |
| DL-1P1S | 0.25 | DN40 | 10 | 219 |
| DL-1P2S | 0.5 | DN40 | 20 | 219 |
| DL-4P1S | 1 | DN80 | 40 | 600 |
| DL-4P2S | 2 | DN80 | 80 | 600 |
| DL-6P1S | 1.5 | DN100 | 60 | 800 |
| DL-6P2S | 3 | DN100 | 120 | 800 |
| DL-8P1S | 2 | DN125 | 80 | 900 |
| DL-8P2S | 4 | DN125 | 160 | 900 |
| DL-10P2S | 5 | DN125 | 200 | 1000 |
| DL-12P2S | 6 | DN150 | 240 | 1200 |
| DL-16P2S | 8 | DN150 | 320 | 1300 |
| DL-20P2S | 10 | DN200 | 400 | 1400 |
注:过滤机工作压力为≤0.4MPa,工作温度为≤120℃(与滤袋材质有关). Note: The working pressure of the filter ≤0.4MPa and the working
orking temperature ≤120℃ (dependent on the material of the filter
bag)
|
Application scope :
Paint, beer, vegetable oil, medicine, cosmetic, petroleum product,
chemical textile, light sensitive chemical, electroplate liquid,
milk, mineral water, hot solvent, emulsion, industrial water, sweet
water, resin, printing ink, industrial wastewater, fruit juice,
edible oil and wax and so on.
Product competitive advantage:
1, Small occupancy,
2, High-efficiency,
3, Enclosed operation
4, Excellent applicability.
5, Easy to be changed.
Juneng Group is a large scale manufacturer of industrial products
in China. This group principally engaged with the in-house research
& development as well as manufacturing of various industrial
filters, separators , centrifuges and pump
