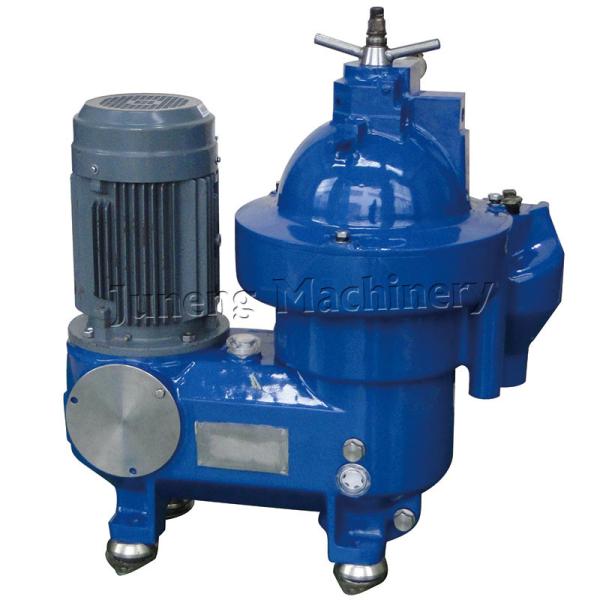

JOS stainless steel,stable operation,light marine oil and fuel oil
clarification diesel water separator
1.Product description:
The marine separator is mainly used for cleaning up the moisture
and mechanical impurity in the fuel ( Light diesel oil, heavy
diesel oil, fuel oil) and lubricating oil of ships and diesel
engine, which is good to reduce the abrasion and prolong its
service-life. The heavy diesel oil is separated by separator can
replace the light diesel oil for using so that reduce the cost of
production greatly.
2.Separator characteristic:
The design, manufacture and inspect are accord with GB/T5745-2002
<< Marine Disk Separator>>.
Stable operation, the vibration is much lower than the national
standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.
3.Product Specifications:
Model | Motor power(kw) | Rated handling capacity(L/h) | Ratating speed(rpm) |
JOS6 | 4 | 3000 | 12000 |
| JOS20 | 7.5 | 6500 | 12000 |
4.Condition for mineral oil separation and factual treatment
volume(reference chart)
| Oil types | fuel oil | lubricating oil |
| heavy disesl oil | heavy oil | high quality oil | purtifying oil | steamship oil |
| Movement viscosity(mm²/S) | 5.5 | 24 | 80 | 180 | 380 | 460 | 600 | 100~120 | 61-72 |
| 40℃ | 50℃ | 40℃ |
| Density(kg/m³)(20℃) | <900 | 900~991 | 880~900 | <900 |
| Separating temperature(℃) | 20 | 40 | 80 | 98 | 80 | 75 |
| Ratio between the factual treatmentvolume and rated
treatmentvolume(%) | 130 | 100 | 60~65 | 45~50 | 35~40 | 25~30 | 20~25 | 50~60 | 25~30 | 80~85 |
5.JOS advantages:
(1)The rotating speed of the equipment is higher and the separation
effect is better
(2)More compact structure and smaller shape
(3)Modular design, higher degree of automation
5.1 Spare parts
5.2 Product shows
6.Description for order: Supply scope and documents attached to the machine: one set of
separator, one set of special tools, one set of spare parts,
oneinstruction book, one certificate of quality, one packing list.
When order, please indicate whether oil pump is needed, and the
full slagging ring valve belongs to manual or automatic control,
andmaking out the electrical pressure, frequency.
