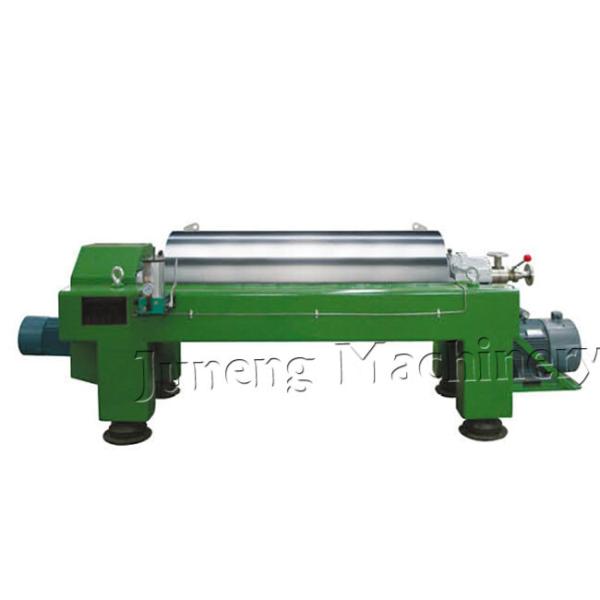

Jiangsu Juneng 3 phase decanter centrifuge machine for oil
obtaining from cooked cartilage and adipose tissue
Detailed Product Description
| Diameter | 250mm-720mm | Voltage : | 220V, 380V,440V,460V |
| Speed | Inverter Control | Electrical Components: | World Famous Brand |
| Operation | Continuous | Separation : | Three phase |
| Bearing | SKF | Moc : | SS304, SS316L, SS2205 |
| Control | PLC | Motor : | 2 |
Product description:
Decanter centrifuge is a mechanical equipment which utilize the
principle of centrifugal and sedimentation and can carry out
continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate
and classify the suspensions with 0.002-3 mm solid-phase particles
and thickness range at 0.5~40%.
The product can be classify into two type LW-counter-current and
parallel-current base on its structure feature. According to feed
feature, product can be divide into LW two-phase separator, LWS
three-phase separator.
It is suitable for separating different feed under different
process condition, and widely use in pharmaceutical, food,
chemical, light industry, environmental protection industry etc…
| Model | Drum diameter
mm | Draw Ratio
L/D | Speed of drum
r/min | Factor of
separation G | Spiral difference
rotate speed
r/min | Inlet
capacity(m3/h) | Main/assist
motor (KW) |
| LW250W | 250 | 3.73 | 4200 | 2467 | 2~31 | 1-7 | 11/4 |
| LW350W | 350 | 4.4 | 3600 | 2540 | 5~25 | 5~18 | 22/5.5 |
| LW450W | 450 | 4.4 | 3200 | 2580 | 5~25 | 5~28 | 30/11 |
| LW520W | 520 | 4.1 | 2850 | 2365 | 2~26 | 10~35 | 45/11 |
| LW550W | 550 | 4.1 | 2650 | 2370 | 2~26 | 10~45 | 55/11 |
Working principle
Features
- All parts coming into contact with the product are made of
stainless steel.
- 3-phase AC motor for controlled torque starting via frequency
converter
- Approximately 80 to 90 % of the oil is recovered.
- Low personnel costs due to continuous and automatic operation.
- Highest g-force for higher solids output
- Adjustable bowl speed via VFD
- Automatic adjustment of differential speed via VFD
- Two motor drive
- Belts for both primary motor and secondary motor
Application:
Decanter centrifuge is most often used for clarification of liquid
containing high concentrations of solid, removing solids from
liquid. It is usually used in waste water and PVC sludge industry.
And also can be used in sunflower oil, palm oil and tea industry.
Introduction of Company:
Juneng Group employs a team of well-trained professional, adopts
advance EPR production management model in cooperation with
state–of–the–art apparatus and process i.e. CNC Turner, Machine
Center, Highly Accuracy Test Instrumentation, Quality and Process
Control System to ensure quality, stability, and reliability of
every product.
Juneng’s success is contributed by the commitment of every member
of the Company. In addition, the specialty and potential of each
member is being respected and disinterred.
Delivery
| Packaging | Seaworthy wooden case |
| Transportation | Automobile transport to shipping port |
After-sales Service Technical Team
Our company has set up a professional after-sales service technical
team. All sell-offs products shall have engineer to guide
installation, assist debugging and train operators until they have
mastered them.
If problem occurs while the equipment operation, we will
immediately process it, promise to feedback within two hours after
informed. After-sales service engineer shall be arranged to the
site to solve the problems. He will never leave, until the user
satisfaction.
