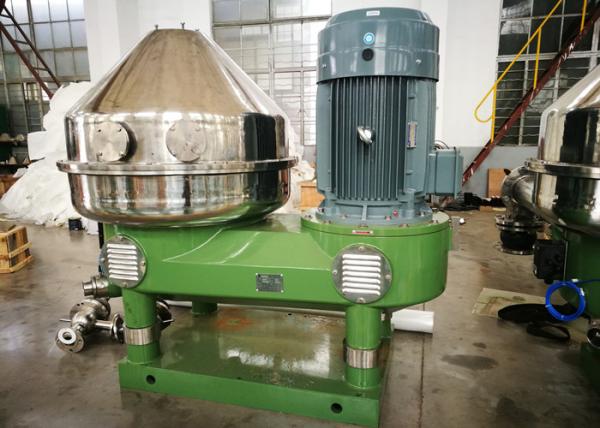

Automatic Nozzle Disc Starch Centrifugal Separators in Corn Starch
Plant
Drum System
The drum part is the heart of the separator, all that we need to
process is fininshed in this highky rotation drum system. It is
composed of drum, drum cover, seal ring, disc rack, disc and 30
nozzles etc.
The drum is forged and processed by numerical control machine,
which is made from that high tension and corrosion resistance
stainless steel, and tested by NDT for 4 times. Therefore this
separator can operate safely and reliably under high-load and high
ratation speed for a long time.
Nozzle of the starch separator
The nozzle of starch separator is one of key part and need periodic
replacement. It apply bayoner lock design, safe, reliable and easy,
one only need to rotate 180 degree with screwdriver, then can take
out the nozzle, which means the operator can master it quickly.
Nozzle adopt convenient replacement design, the cover can asending
automaticlly, which ease the labor intensity of operator.
Starch separator structurfeatures
1 . Auto-safe lubracation system
2 . Firm metal defense cover
3 . Motor frame with vibration-absorption
4 . The critically manufactured stainless steel shell is hard and
durable,and never fading
5 . equipmentSpecial suspension-branch make sure the drum work
stably in high rotation speed
6 . Firm vertical shaft, which installed hydraulic ascending and
descending system inside, compact structure and convenient
operation
7 . The auto-control bearing lubracation system make sure a
long-time and reliable work of the drive system
8 . Ciritically processed pedestal pedestal make the machine
stable, it has a very canonical machinary dimension
9 . The designed advanced inner-cycling system make sure it
regulate separation effect exactly, and have a stable realible
separation
General
The starch separator are mainly used in pre-concentration starch,
separation of starch and gluten, concentration of gluten(protein),
clarify of process water in the after step and so on.
Graining process : Corn / Cassava/ wheat/ potato starch
In the starch separation process, the separator rotates in high
speed then creates the centrifugal force, so the separation
efficiency is improved. At the same time maximize the production
efficiency.
It’s mainly used in pre-concentration starch, separation of starch
and gluten, concentration of gluten (protein) , clarify of process
water in the after step and so on.
Product competitive advantage:
1 , Big diameter of drum, large area of disk, strong capability of
production(separation), excellent effect of separation.
2 , Adopting top-suspension driving, which makes the separator with
high rotation stability, largely improves the using life of
bearings and main shaft.
3 , Adopting automatic control of lubricating oil circuit, which
protects and prolongs the using life of driving system.
4 , Adopting big nozzles , which has big feed capacity, reduces the
chances of block, assuring the continuous production.
5 , Fitted with hydraulic system for lifting drum, which makes more
easily to check the drum and replace nozzles.
6 , Operating easily, the workers can master the operation
regulation in short.
Specifications:
Model | Filtration area | Speed of drum (RPM) | Weight (kg) | Max capacity | Figure size mm |
DPF800 | 22-115 | 2750-3300 | 7800 | 130 T / H | 3200*1800*3100 |
