Disc Centrifuge Industrial Oil Separators For Chemical Stable
Operation
Industrial Oil Separators Description:

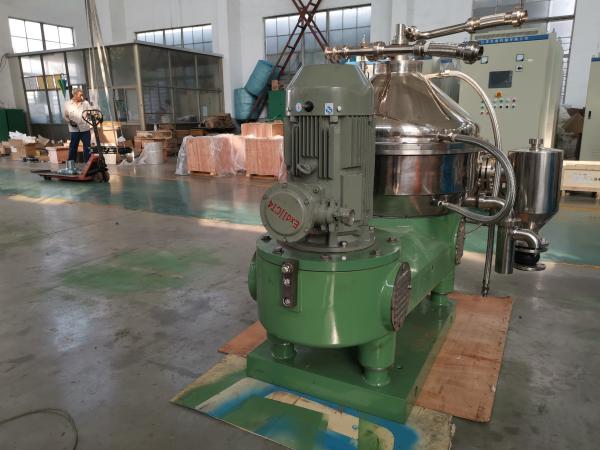

Our disc centrifuge separator is a mechanical device that uses the
principle of centrifugal sedimentation to continuously separate two
liquid or solid liquid suspensions with poor density. It has the
advantages of high speed, stable operation, complete sealing of the
import and export system, low noise and good separation effect.
The disc centrifuge separator is mainly composed of an inlet and
outlet device, a rotating drum, a vertical shaft, a horizontal
shaft, a fuselage, a speed measuring device and an electric motor.
Its main application areas are vegetable oil, animal oil, dairy,
food and beverage, plant extract, bio-pharmaceutical, chemical
industry, mineral oil industry and bio-oil production industry.
Industrial Oil Separators Applications:
1 , Separation of methyl ester, glycerin, catalyst, de-soap,
methanol
2, Methyl washing
3, Extraction of fatty acids
Introduction of Company:
Juneng Group is a large scale manufacturer of industrial products
in China with its subsidiaries namely Juneng Machinery(China) Co.,
Ltd and Jiangsu Juneng Machinery Co., Ltd. The group principally
engaged with the in-house research & development as well as
manufacturing of various industrial filters, separators and pumps.
The Company is proud to be the leader in such industry with Fats
industry, Chemical industry, Pharmaceutical industry, Beverage
industry, Petrol - chemical industry, and now is one of the
well-know producers and suppliers in the world. The company now has
its three production bases with a total capacity of 280,000 square
meters in Nanjing City and Yixing City of Jiangsu province,
permanent workforces not less than 1300 people and the production
line is well equipped with more than 1500 units of advanced
production equipment and test instrumentation.
Industrial Oil Separators advantage:
High speed, stable operation,
fully closed of inlet and outlet system,
low noise,
good separation,
high oil rate,
fully automatic control ,
easy to operate.
Industrial Oil Separators Specifications:
Model | Treatment
capacity (L/H) | Inlet
pressure (Mpa) | Outlet
pressure (Mpa) | Motor
power (Kw) | Weight(Kg) | Outline
dimension (mm) |
DHSY470 | 4000-7000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 |
DHSY550 | 6000-15000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850*1550*2050 |
DHSY360 | 1000-25000 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
