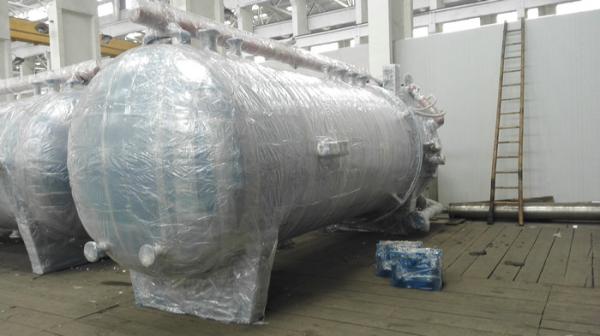

Vacuum Rotary Leaf Filter / Horizontal Leaf Filter Completely
Sealed Filtration
Rotary Leaf Filter Characteristics:
(1) completely sealed filtration, no leakage, no environmental
pollution
(2) the mesh plate automatic pull structure, convenient for
observation and slag removal
(3) double filter, the filter has big filter area, capacity of
large amount of slag
(4) vibration slag discharge, reduce the labor intensity
(5) the hydraulic control, to realize the automatic operation
(6) the device can make the large capacity, large areas of
filtering system
Rotary Leaf Filter Application:
Food industry : Syrups, edible oils, dewaxing , decolour, degrease
Dry, semidry cake and clean filtrate recovery.
Rotary Leaf Filter advantage:
1, Fully hermetic filter , no leakage, no pollution.
2, Filtering gauze flakes can be pulled out automatically, and easy
to be inspected and cleaned.
3, Automatically residue discharging by which labor can be largely
reduced.
4, A large filtration area and large solids holding capacity can be
obtained .
Rotary Leaf Filter Specifications:
Area series ( ㎡) | Shell diameter series ( mm) | Work pressure ( Mpa) | Work temperature
(℃) | Proximate treatment
capacity (T/H·㎡) |
5, 10, 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90, 100, 120,
140, 160, 180, 200 | 900, 1200, 1400, 1500, 1600,
1700, 1800, 2000 | 0.4 | 150 | Oil | 0.2 |
|
| Beverage | 0.8 |
